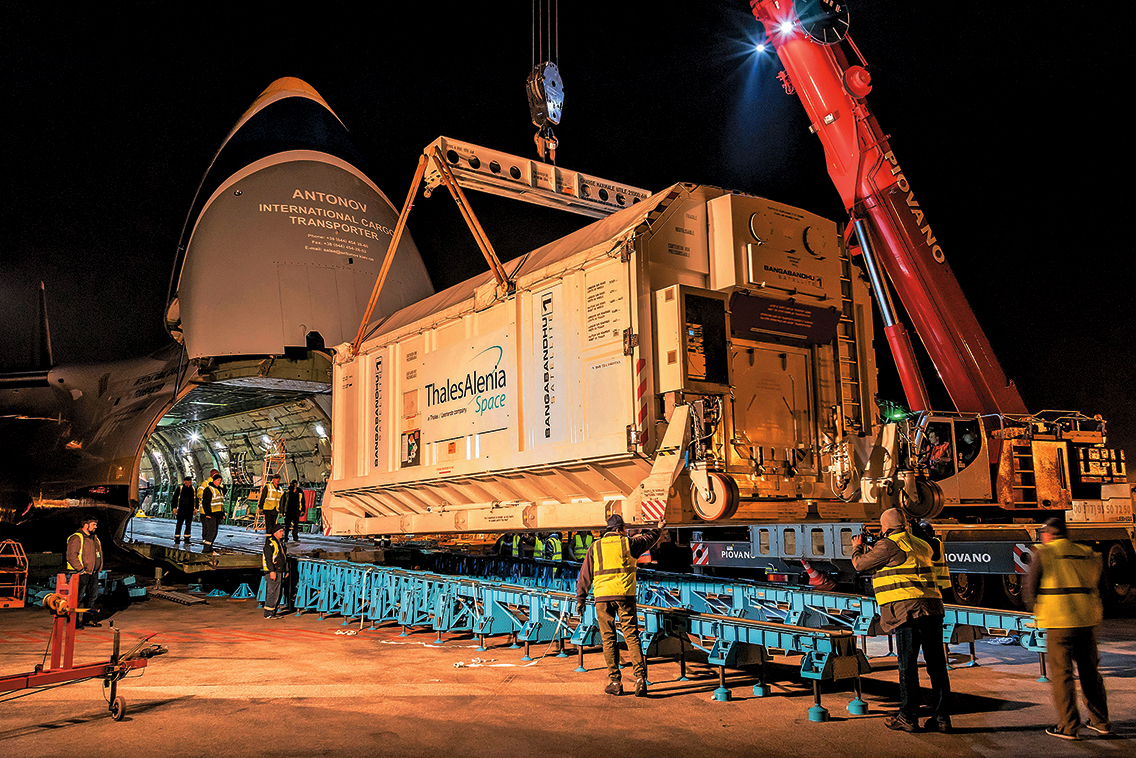

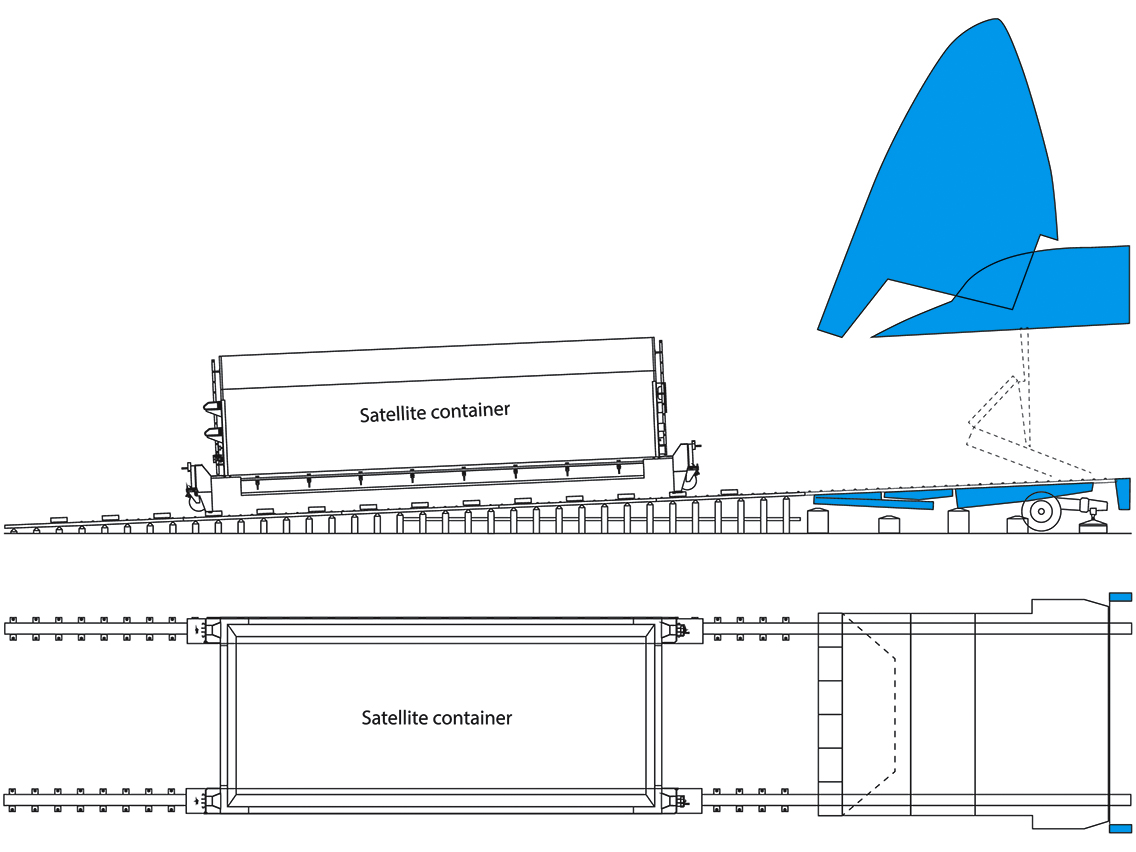

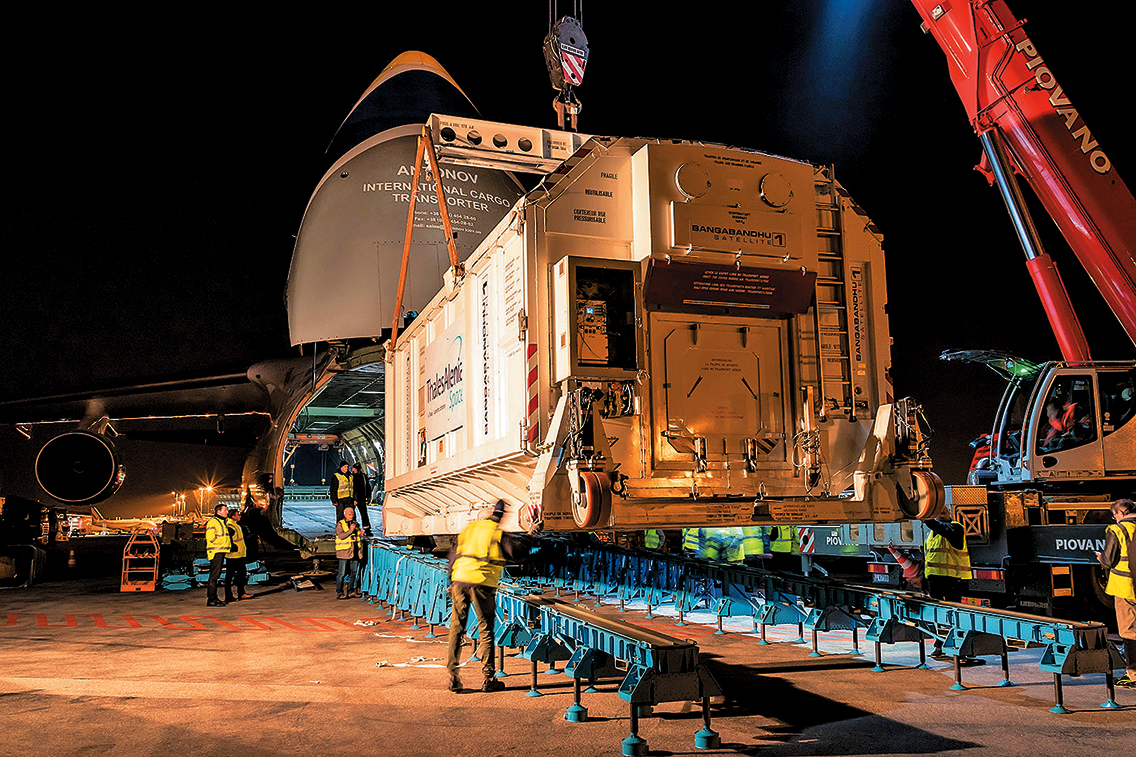

Loading of tall pieces with height up to 4.27 m (168 in) –
using OPKG-50 loading equipment and external cranes.

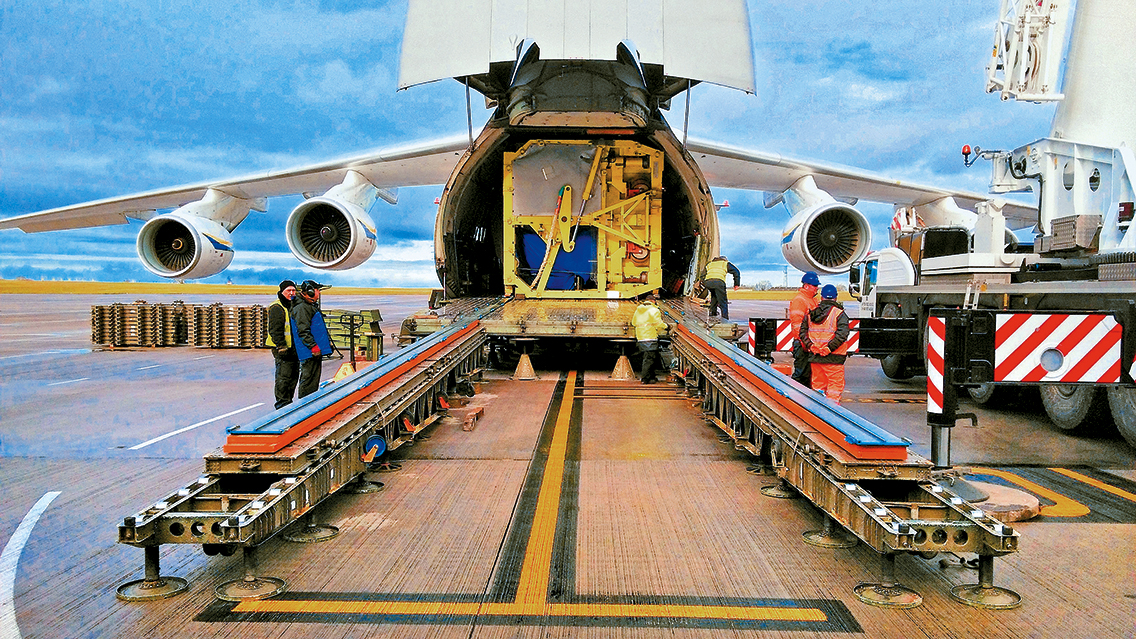

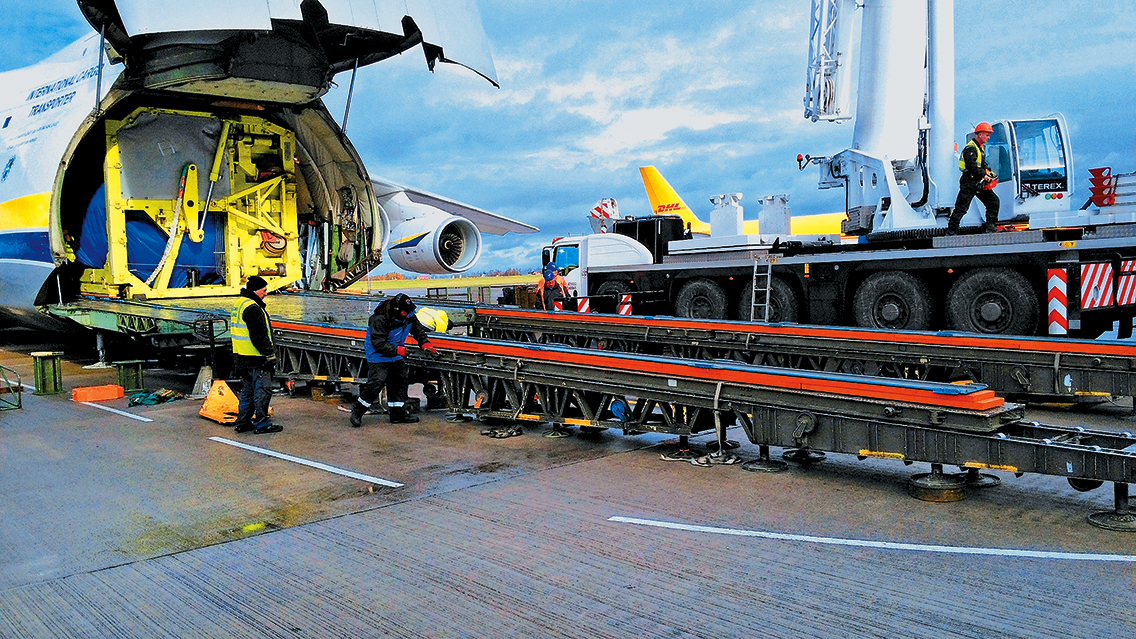

The OPKG-50 ramp system is a unique, low profile skate-type loading equipment
intended for loading and offloading oversized cargo weighed up to 50,000 kg (110,231
lbs) into the AN-124-100/150M. Although the system is similar to the OPTG-120M ramp
system, it allows the loading of higher, but lighter pieces. However, the loading concept is
the same as the OPTG-120M ramp system.
OPKG-50 ‘Next Generation’
Ramp System:
Lowest profile on the market – 0.08 m (3.15 in);
Wide track size – 5.502 m (18 ft 6 in);
Length – 25 m (82 ft);
Brackets can be dismantled, allowing
greater space between packed ramp
and containers.
Cargo parameters restricted
to the following limits:
Single cargo weight – 50,000 kg (110,231 lbs);
Max height 4.27 m (14 ft 1 in);
weight per running meter up to 3600 kg (7,937 lbs);
Cargo footprint must be flat for proper
weight distribution.
